Series of Equipment Quick Swap

The currently recommended series of ATC

Product Feature：

一.  Load: From 5kg to 1500kg，Multiple load types ATC are available

二. Appearance Feature:

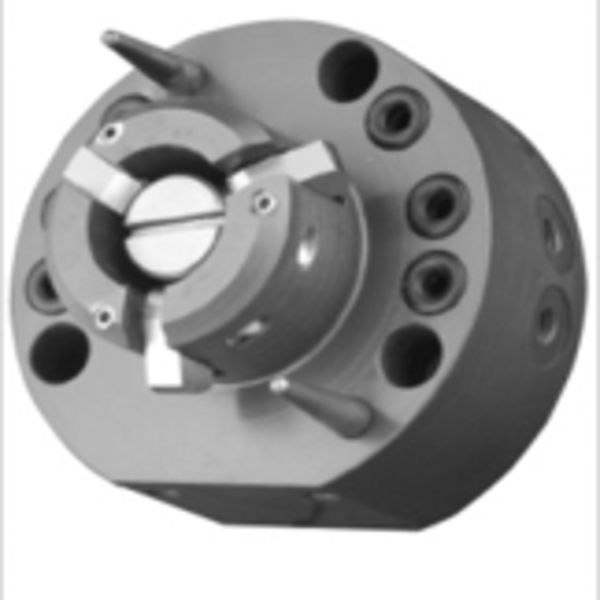

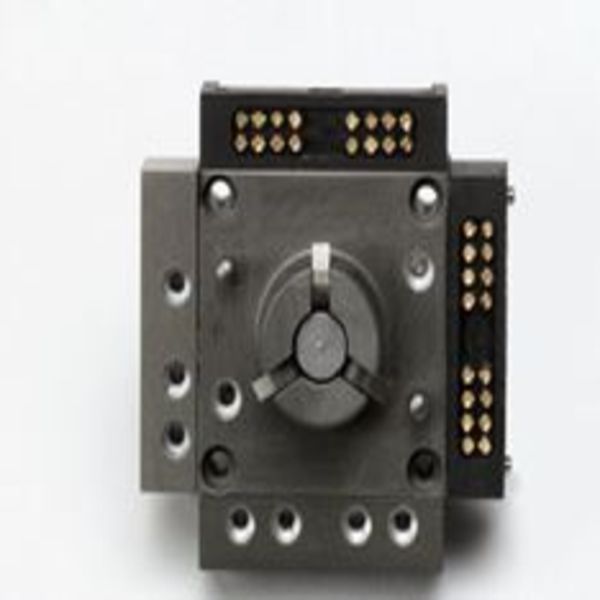

1. Small load quick change compact, simple function, using round or square, easy to use.

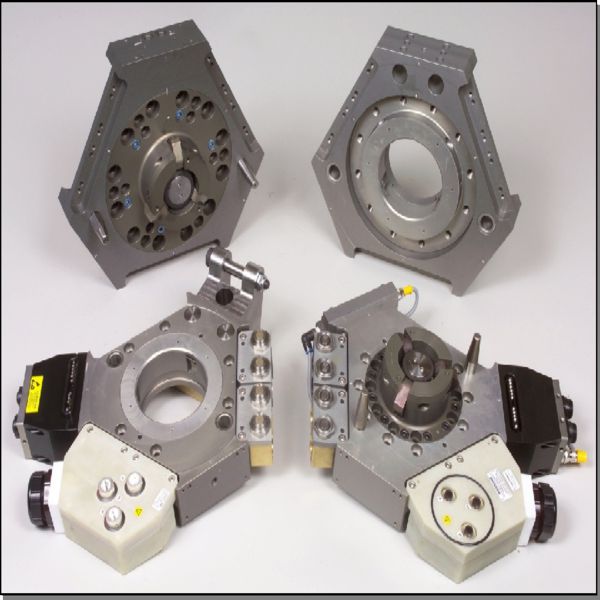

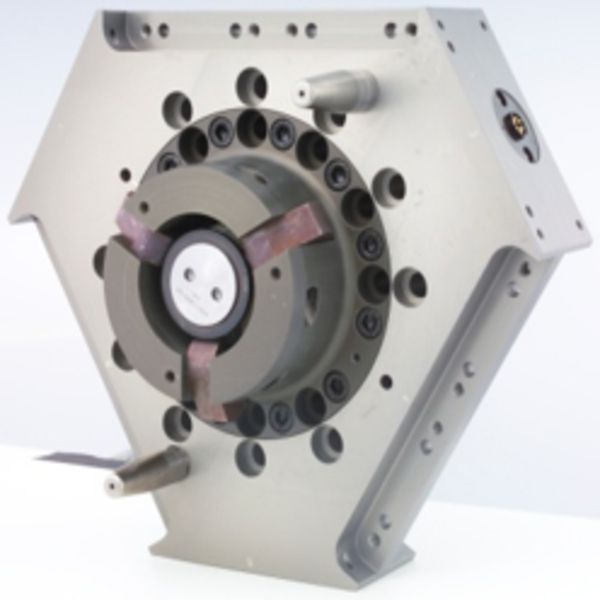

2. The large load quick change adopts a polygonal design, adding functional modules for installation,

   and the configuration of ATC is more complete.

3. Modular design, easy installation, and more convenient function expansion.

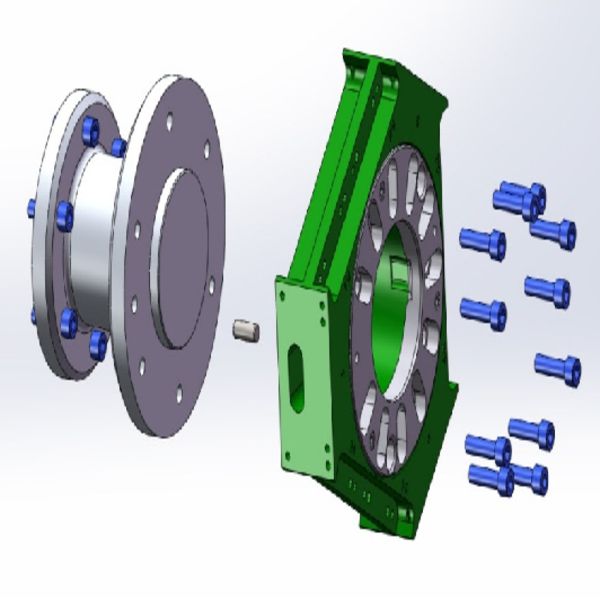

三.Reduce the use of transfer plates:

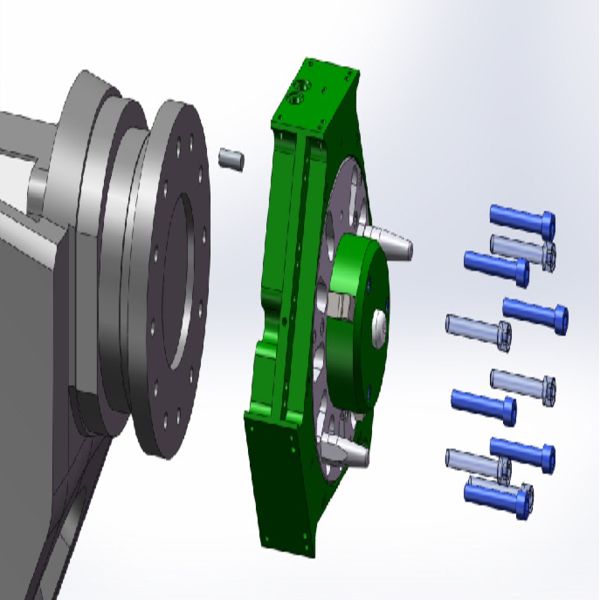

1. The robot side body adopts the ISO9409-1 standard installation bolt design,
   which can be directly connected to most robot six axes without the need for a transition plate.

2. The tool side body also adopts the ISO9409-1 standard installation bolt design,

   making installation more convenient.

四. Gun Grab Structure:

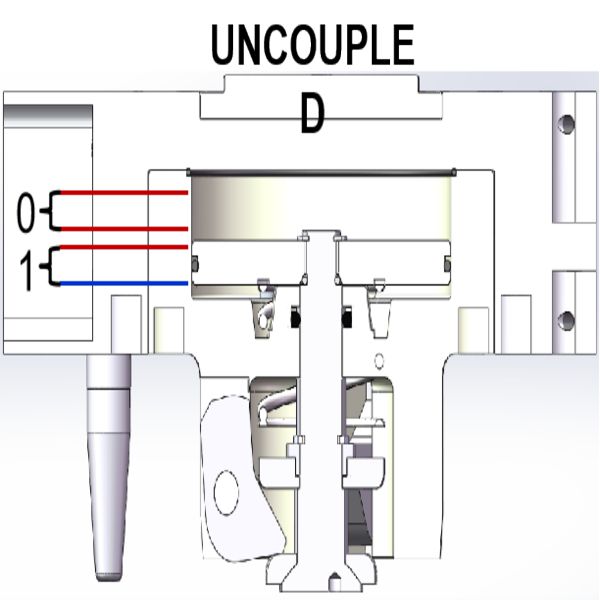

1.Adopting a piston type center structure, driving three cams to retract and retract,
 achieving gun grabbing and gun release.
2.The center adopts a protective spring design. More secure and reliable.The manufacturer promises a lifetime warranty for the spring.

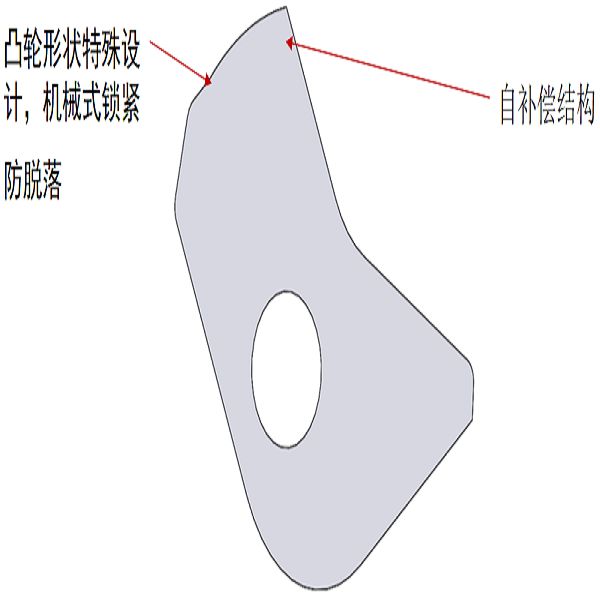

3.Adhere to the design of cam grabbing gun structure for 30 years, and mechanical self-locking is safer.
  Ensure tomaintain a locked state in the event of sudden gas or power outage.
4.After cam wear, it has a self compensation function and always maintains its original position locked state.

五. Sensor Design:

1. Adopting a pressure sensor, free from any electromagnetic interference, safe and reliable.
2.The sensor adopts a side mounted form, making replacement more convenient.

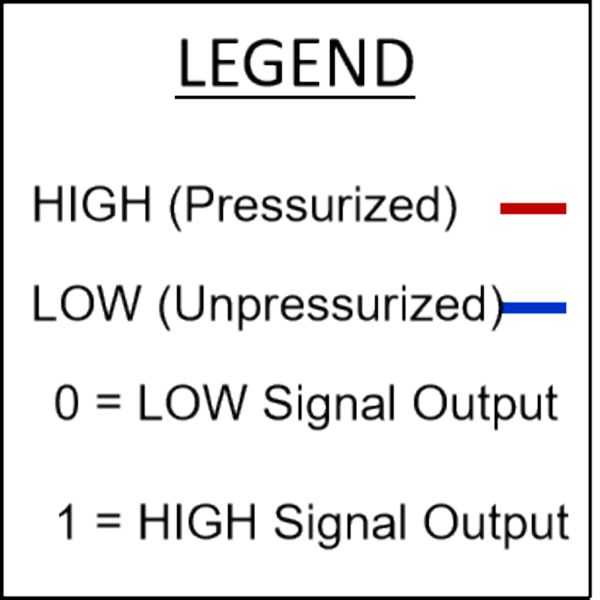

Generate detection signal through pressure difference
